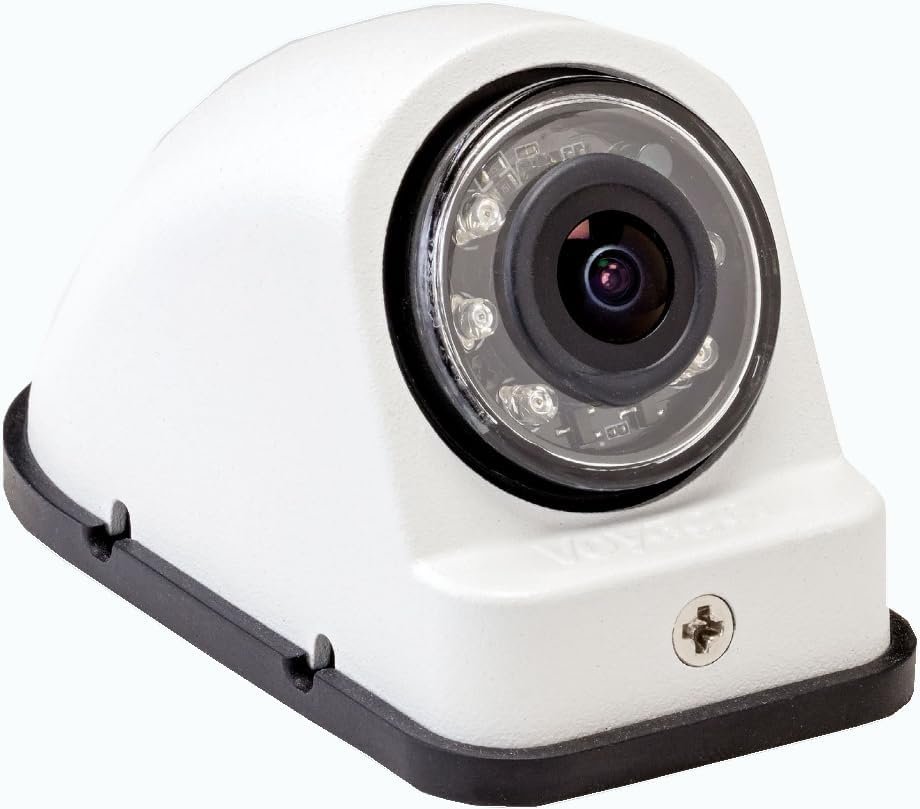

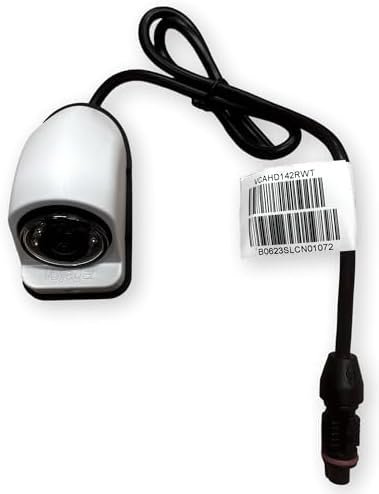

VCAHD142RWT Color CMOS IR LED Right Side Camera, High Performance Color Optics
179.00$
VCAHD142RWT Color CMOS IR LED Right Side Camera, High Performance Color Optics, IP69K, Aluminum Housing, IR Low Light Assist, ASTM-B117, 12VDC
The VCAHD142RWT is a high-performance color camera that is perfect for a variety of applications. It features a waterproof design (IP69K), corrosion resistance (ASTM-B117), and IR low-light assist for optimal performance in a variety of conditions.
Key Features:
- Side Mount Camera (Right Side Orientation), Aluminum Housing
- High-performance color optics for clear and accurate images, 12VDC power for easy installation and operation
- CMOS technology for fast and efficient image capture
- Waterproof (IP69K) and corrosion resistant (ASTM-B117) for durability
- IR low-light assist for optimal performance in low-light conditions

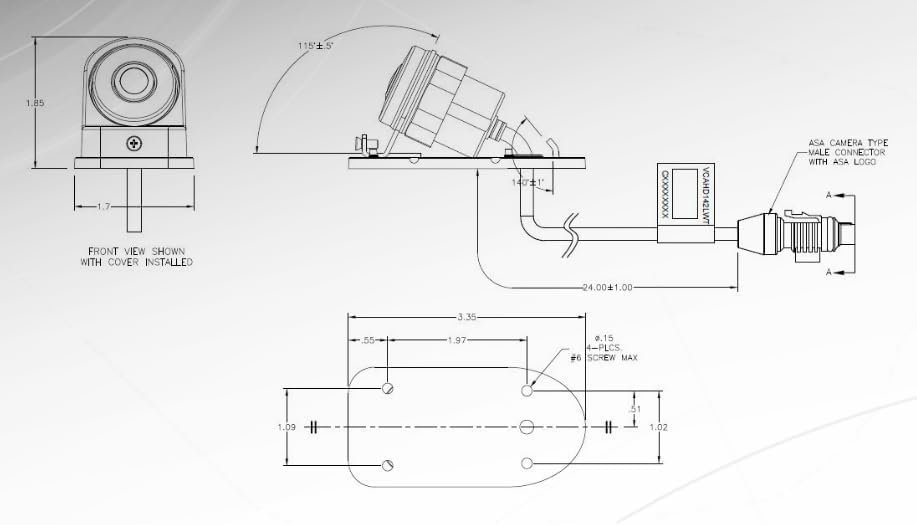

- Unit Dimensions (without cable): 3.27 x 1.93 x 1.77 inches
- Weight: 0.41 Pounds

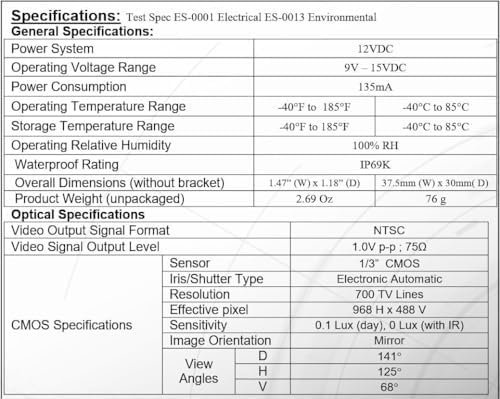

Specifications:
- Power System 12VDC
- Operating Voltage Range 9V – 15VDC
- Power Consumption 135mA
- Optical Specifications:
- Video Output Signal Format NTSC
- Video Signal Output Level 1.0V p-p ; 75Ω
- Sensor 1/3″ CMOS
- Iris/Shutter Type Electronic Automatic
- Resolution 700 TV Lines
- Effective pixel 968 H x 488 V
- Sensitivity 0.1 Lux (day), 0 Lux (with IR)
- Image Orientation Mirror
- Waterproof Rating IP69K
- Unit Dimensions (without cable): 3.27 x 1.93 x 1.77 inches
- Weight: 0.41 Pounds
High-performance color optics for clear and accurate images, 12VDC power for easy installation and operation
CMOS technology for fast and efficient image capture
Waterproof (IP69K) and corrosion resistant (ASTM-B117) for durability
IR low-light assist for optimal performance in low-light conditions
Unit Dimensions (without cable): 3.27 x 1.93 x 1.77 inches
Weight: 0.41 Pounds
